AUTONOMOUS OHMNI TELE ROBOT
| DIMENSIONS | |
|---|---|
| Height | 56 inches (142.2 cm) |
| Base Footprint | 13.9 x 17.2 inches (35.3 x 43.7 cm) |
| CHARGING DOCK | |
| Height | 2.1 inches |
| Base | 5.5 x 4.7 inches (14.0 x 11.9 cm) |
| DISPLAY | |
| Resolution | 1280x800 |
| Touch points | 5 simultaneous |
| Panel type | IPS |
| CPU | |
| Processor | Intel Atom X5 Z8350 1.92 GHz |
| Number of cores | 4 Cores |
| Memory | 2GB DDR3L |
| Storage | 16 GB eMMC |
| USB ports | 4 USB 2.0 A (full size) 1 USB 3.0 Micro B OTG |
| Video ports | 1 HDMI |
| SPEAKER | |
|---|---|
| Speaker type | 50mm Full Range Neodyne |
| Speaker range | 250 HZ - 14kHz |
| Speaker volume | 48dB volume range |
| MICROPHONE | |
| Mic type | 6mm Omnidirectional |
| Microphone range | 100Hz - 10kHz |
| Folding hinge | |
| Power button | Illuminated, software on-off |
| Release | Interlocking pull-to-release |
| NECK SERVO | |
| Torque | 12kgf-cm |
| Rotation speed | 60 deg/sec |
| Encoder type | 10-bit absolute |
| Protocol | Serial multidrop, packet based |
| BATTERY SYSTEM | |
|---|---|
| Charge rate | 20W |
| Cell protection | Undervoltage, Overvoltage, Short circuit, Current limit, Cell failure |
| Cell balancing | Yes |
| Battery chemistry | LiFePO4 |
| Battery capacity | 95Wh |
| Runtime | 4-5h at full load |
| Input | 100-240V AC, 50/60 Hz |
| FRONT CAMERA (SUPERCAM) | |
| Sensor res | 2MP |
| Maximum res | 4208x3120 |
| Streaming res | 1280x960 (With real-time 3x superzoom to native 4K resolution) |
| Chroma | RGB Bayer |
| Pixel size | 3.0 micron |
| Sensor size | 5865 x 3276 um |
| NAV CAMERA | |
|---|---|
| Sensor res | 2MP |
| Number of cores | 4 Cores |
| Maximum res | 1920x1080 |
| Streaming res | 320x240 |
| Chroma | RGB Bayer |
| Pixel size | 3.0 micron |
| Sensor size | 5865 x 3276 um |
| DRIVE SYSTEM | |
| Motor power | 2x 30W |
| Motor type | Three phase brushless |
| Maximum speed | 2 mph |
| Carrying capacity | 20 lbs |
| E-brake | Yes, automatically engaged |
| Stall detection | Yes, automatic |
| Electronic torque limiting | Yes |
| Encoder | 14-bit/revolution absolute |
| Transmission | 11:30 timing belt reduction |
| Protocol | Serial multidrop, packet based |
Is the product specification content useful for your purchase process?
How telepresence is made easy
4K HD wide angle camera
Ultra-responsive tilting neck
High capacity battery
Choose your color to express yourself
Autodocking technology
Lightweight and portable
Far-field mic and speaker
Glide drive technology
Natural human interaction
With its adjustable height, the Ohmni robot performs both standing and seated conversation in a smooth, confident manner. The robot's fluid, 130-degree tilting neck gives you an immersive experience with a wide angle view, and feels more human than a fixed screen. With the ability to look all the way up to the ceiling or down to the floor, you’ll feel truly present in your office.
Natural HumanInteraction
Portable,Easy to Set up

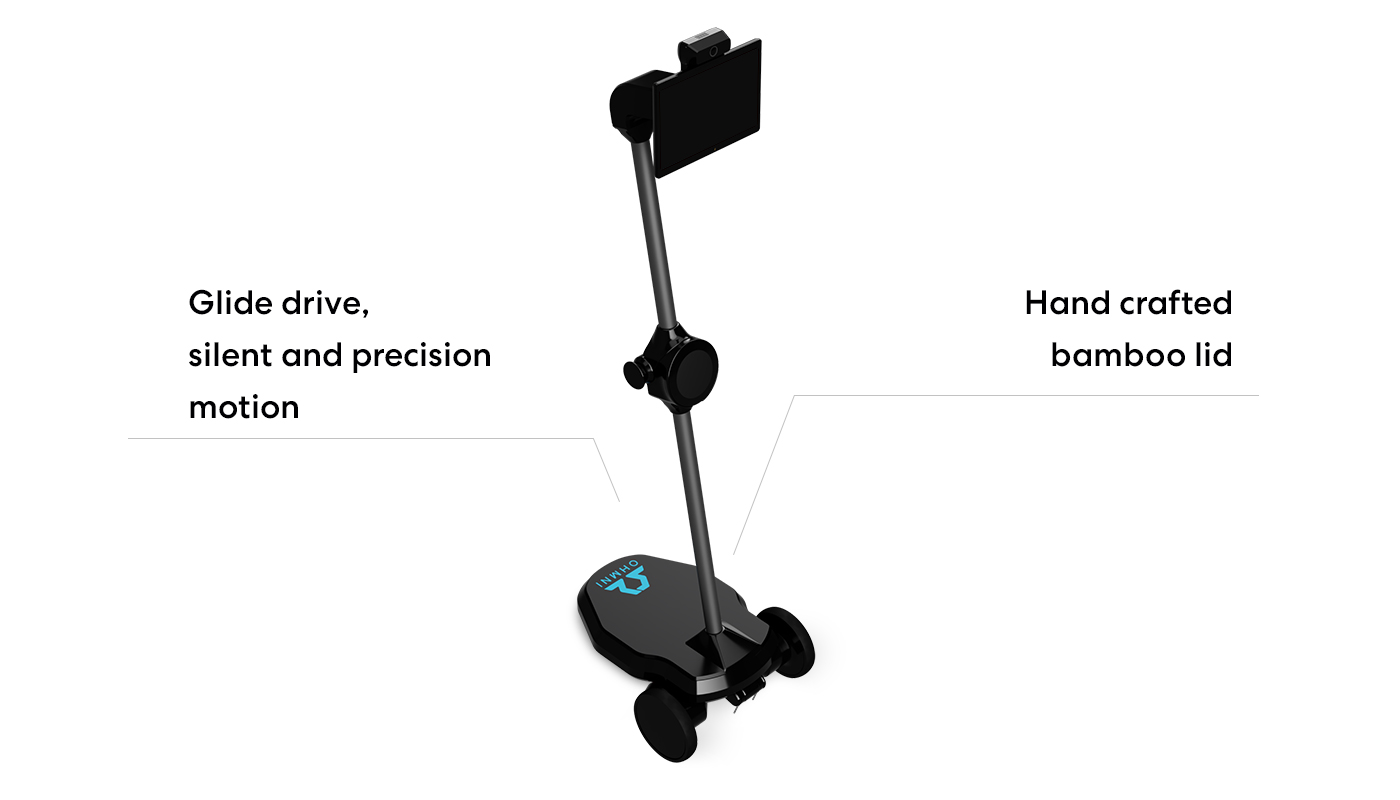

Drives withConfidence
Auto-docking,Powerful Battery
Easy-to-useSoftware

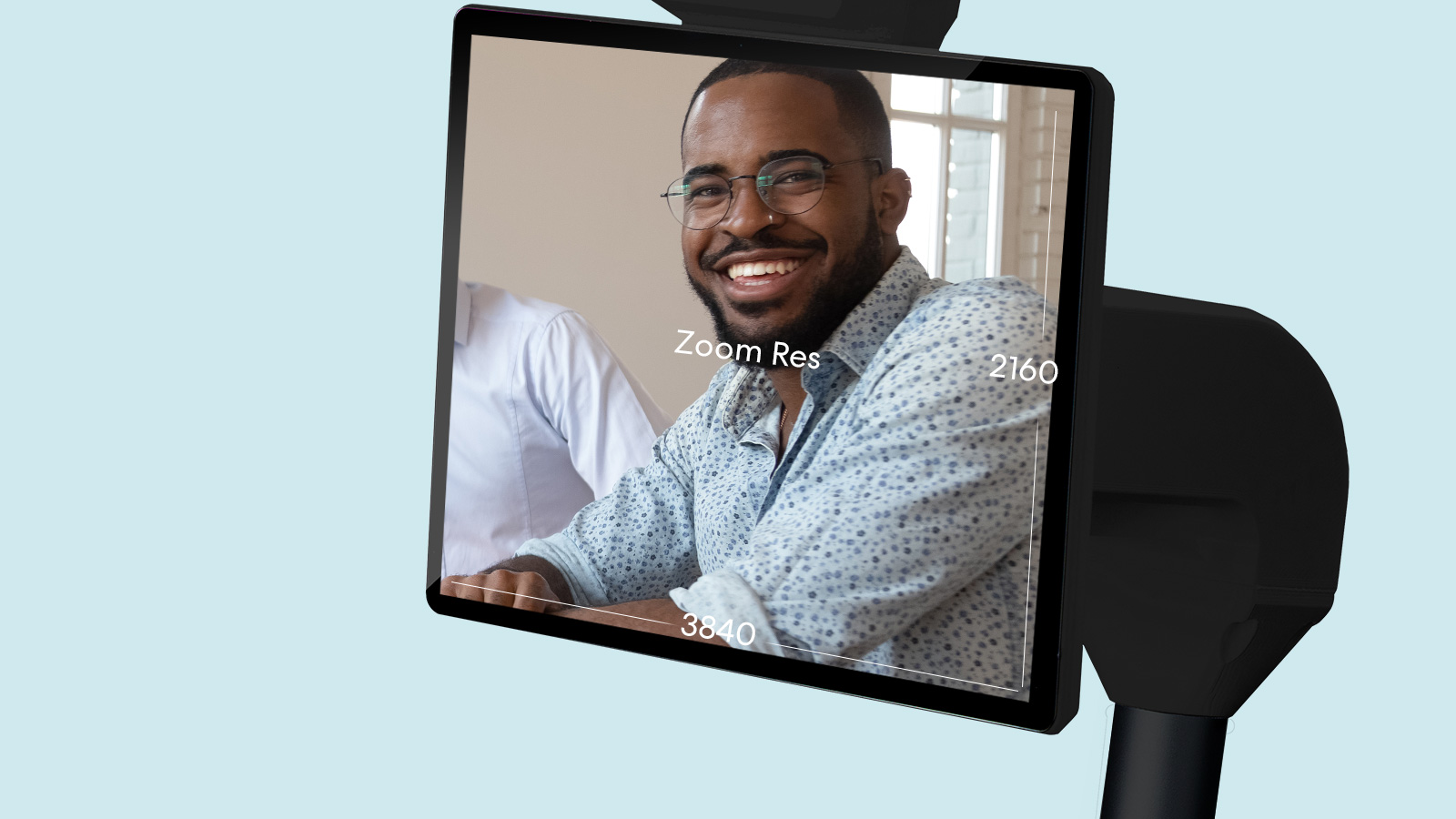

Incredibly Detailed View
A 13MP wide-angle camera delivers ultra-low-latency streaming in high resolution. Real-time zoom for reading whiteboards and fine details at full UHD 4K.
Supercam fov: 140 deg
Streaming res: 1280 x 960 30 fps
Zoom res equiv: 3840 x 2160 UHD 4K
Snapshot res: 4208 x 3120 13 MP
Crystal Clear Sound System
10.1’’ HD IPS touchscreen is equipped with state of the art far-field mic and speakerphone. The convenient integration of Jabra sound system provides high quality audio performance.

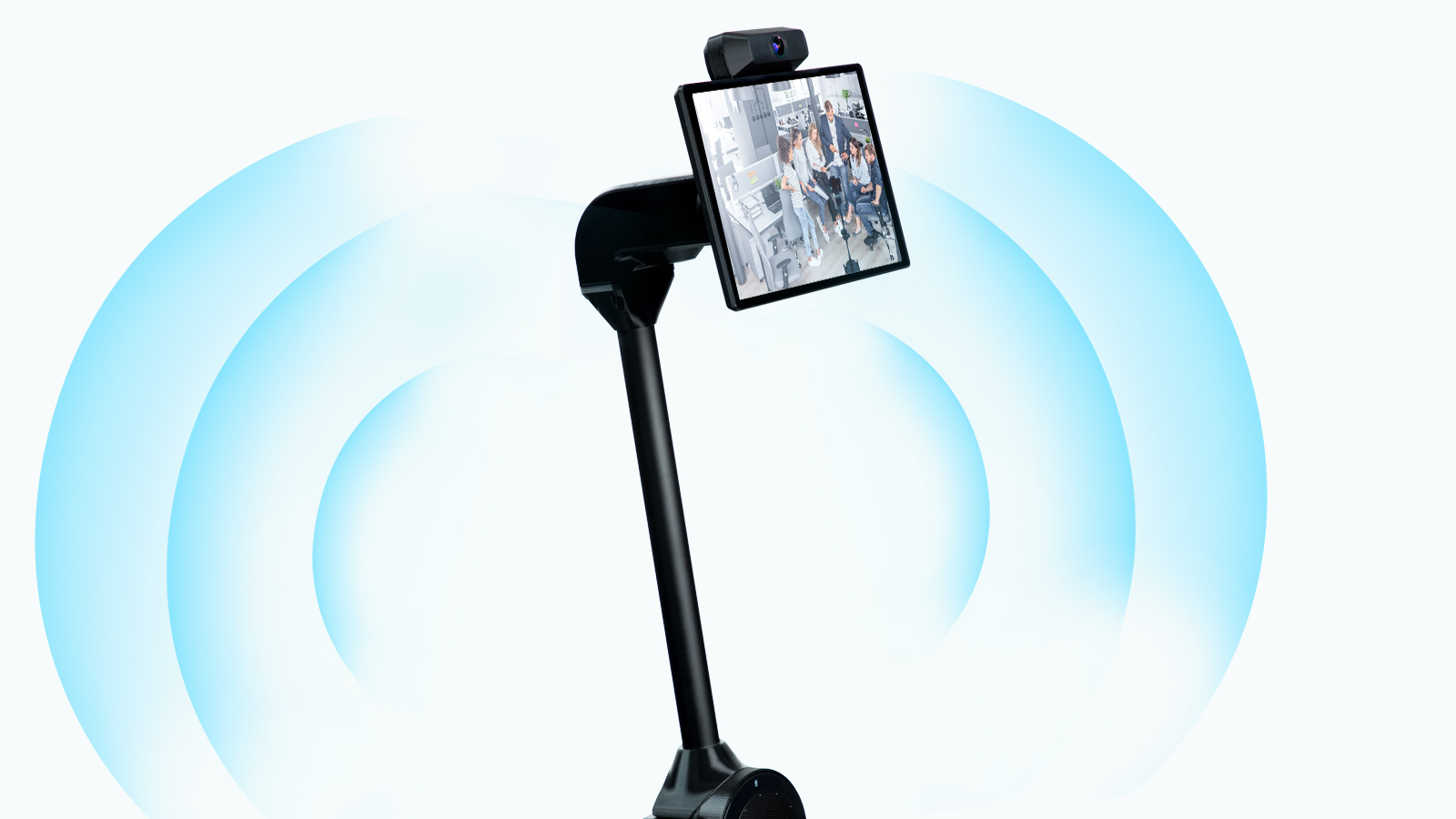

Dual-Band Wifi with Roaming for Big Space
Dual-band WiFi radio with full 2.4GHz + 5GHz support. Optimized background scanning and roaming for large spaces. Full 802.1x support to get you connected to your businesses network.
